Suzuki Swift Mk2 (Swift Mk2 DOG-box)
Product description

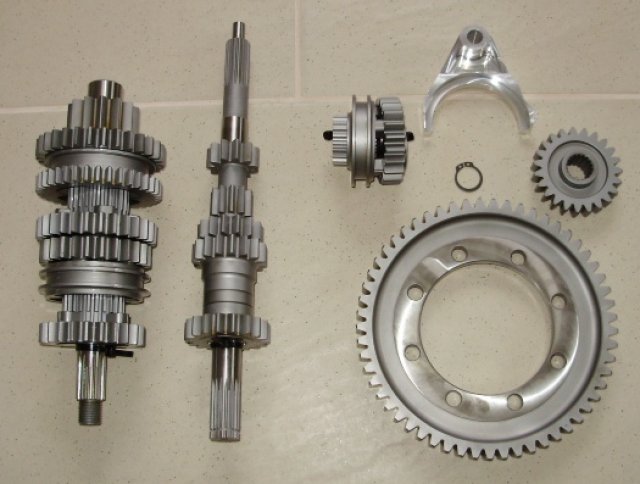

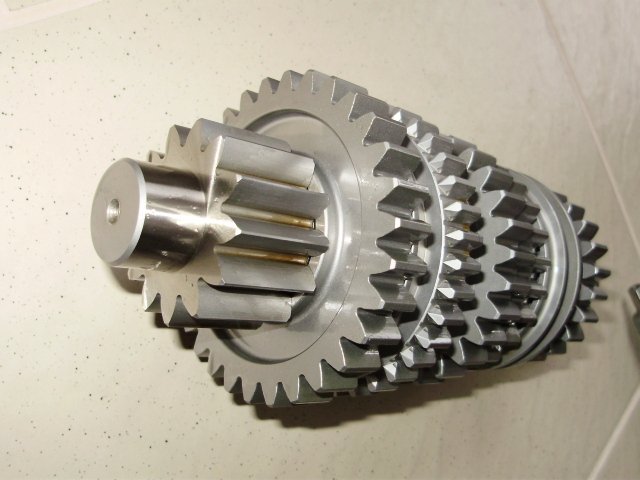

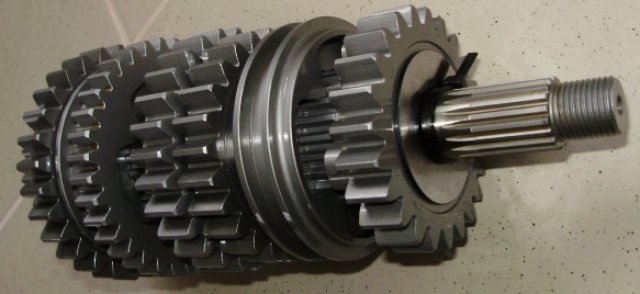

5 speed DOG-KIT for Suzuki Swift Mk2 1,3 GTi, produced in 1988-1993, 2WD
4 speed DOG-KIT 2600 EUR

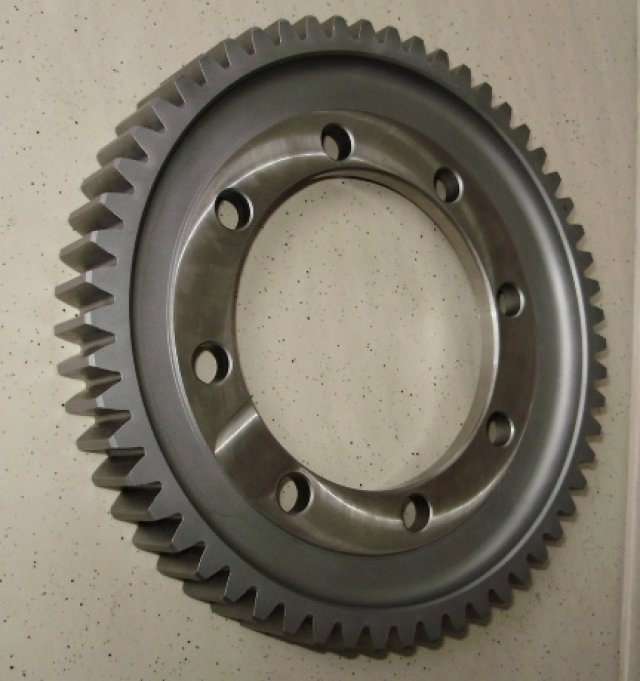

| Available Final Drives (Crown Wheel and Pinion – FD or CWP) | |||
| CW | Pinion | ratio | |
| 60 | 12 | 5,000 | |
| 58 | 12 | 4,833 | |
| 60 | 13 | 4,615 | |
| 57 | 13 | 4,385 | |
| 59 | 14 | 4,214 | |
| teeth | ratio | ||
| 1.gear | 30 | 11 | 2,727 |
| 2.gear | 28 | 14 | 2,000 |
| 3.gear | 25 | 16 | 1,563 |
| 4.gear | 23 | 18 | 1,278 |
| 5.gear | 23 | 21 | 1,095 |
to 4x4 version - CULTUS / SWIFT 4WD we can offer DOG kit :
http://www.sqsracing.com/produkt/473:579:suzuki-swift-cultus-4x4-mk2
Please download files below:
- speed counter with ratios and Final Drives (CWP)
Files
|
!racing-gearbox-suzuki-swift-5sp.xls | Speed counter + ratios Swift | (0.01 MB) |
|
|
|
|
|
|
|
|
|
