SUZUKI SWIFT / CULTUS 4x4 Mk2

3000.00 €

without VAT
Producer: SQS
Publication date: 03.03.2015
Warranty: 24 months

Product description

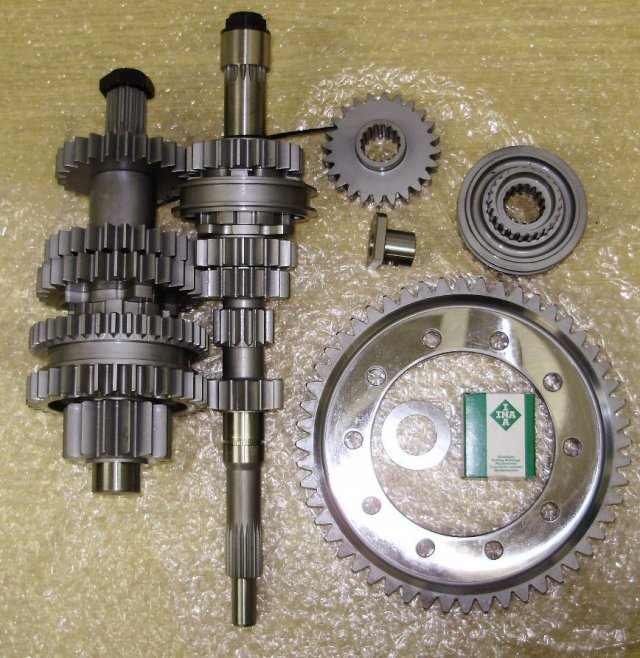

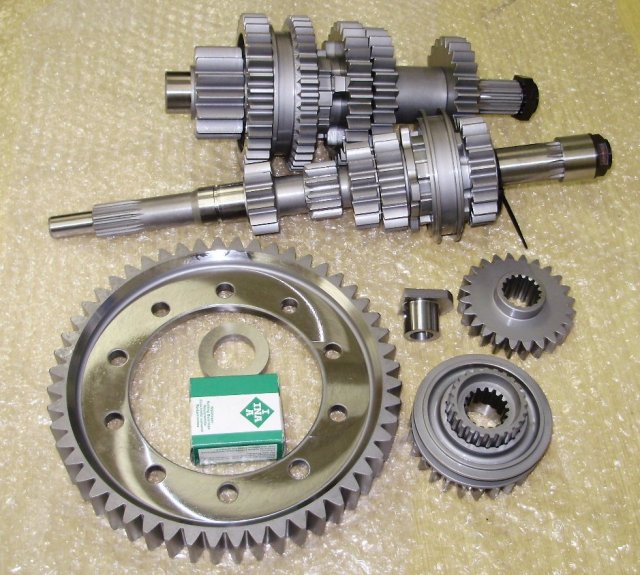

5 speed DOG-KIT for Suzuki CULTUS / Swift Mk2  1,3 4x4  produced in 1988-1995,  4WD

gearkit is based on DOG kit of  Mk4 1,6 with different Final Drive (axis distance)

FD is always custom made so can be made any, here are examples of FD we did in past:

CW Pinion ratio
60 12 5,000
59 13 4,538
59 14 4,214


3,900



Gearkit ratio:

SQS DOG Swift 4x4 1,3 Mk2




teeth ratio
1.gear 33 13 2,538
2.gear 29 15 1,933
3.gear 27 18 1,500
4.gear 25 20 1,250
5.gear 23 22 1,045





5.gear 24 22 1,091 optional





4.gear 24 20 1,200 optional
5.gear 24 25 0,960 optional
