Product description

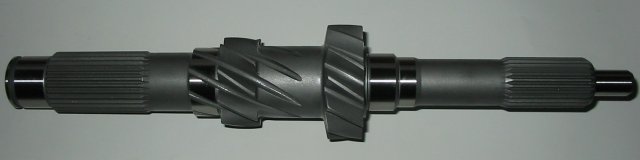

 26mm/26 spline INLET Shaft designed for extremly boosted  engines.

Original diameter  22,75 mm grows-up to 26 mm  - it will encrease strenght approx 50%

STRONG INLET shaft fits:

- SQS delivered 8point Ceramic Clutch plate (CCC)
- serial VW lamelle from T5/Tiguan - e.g. order code: 03L 141 031 B
- Sachs Performance double lamelle order code :  88 1864 999 103-931  (see attached pic)
- Sachse centre hub no. 931

Its  designed and produced with prolonged peg to flywheel bearing

(original bearing from VW  15 x 21 x15, order code by VW: 056 105 313 C )

becouse of using mainly with double disc clutch are prolonged also splines

but is possible delivery it in  more end designs  - see drawings of  versions A-B-C in pdf file below

The shaft is only designed for 02Q and will not be available for 02M

(02M casing is weaker than 02Q and hase no sense reinforced the shaft when case is weak point).

Strong A is reinforced shaft with large diameter - lenght of splines longer 5mm than serial + prolongation for flywheel bearing
Strong B is reinforced shaft with large diameter - lenght of splines longer 5mm than serial
Strong C  is reinforced shaft with large diameter - lenght  of splines same as serial
02Q-01-00   is shaft with serial diamater/splines

STRONG SHAFT only - as spare part cost 633 EUR

Files

	strong-shaft-hc-.pdf	STRONG SHAFT versions A-B-C	(0.02 MB)
	sachs-clutch-centres.pdf	SACHS CLUTCH Centres	(0.76 MB)

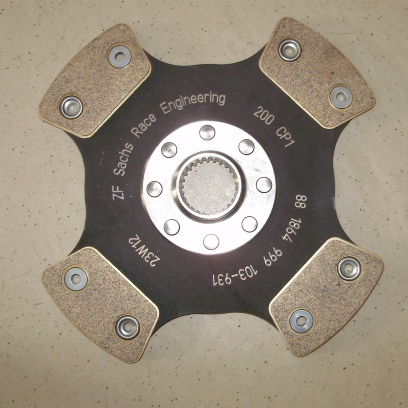

	p9020381.jpg	SACHS Double Plate Clutch	(0.08 MB)
