SQS VW (SQS-E VW)

1470.00 €

without VAT
Producer: SQS
Publication date: 08.02.2009
Code: SQSEVW
Warranty: 24 months
VAT: 21 %
Other variants: SQS VW mechanical

Parameters

Weight: 5,8 kg
Colors:

Product description

for VW-Audi-Seat-Skoda Mk2,3,4,5, gearbox types: 02A/02J/02C/02R - 02M/02Q - 02T

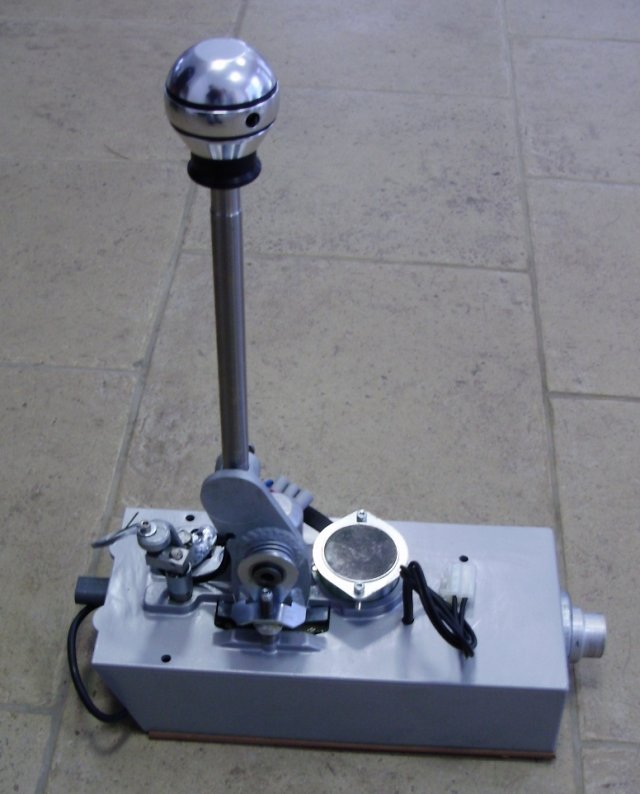

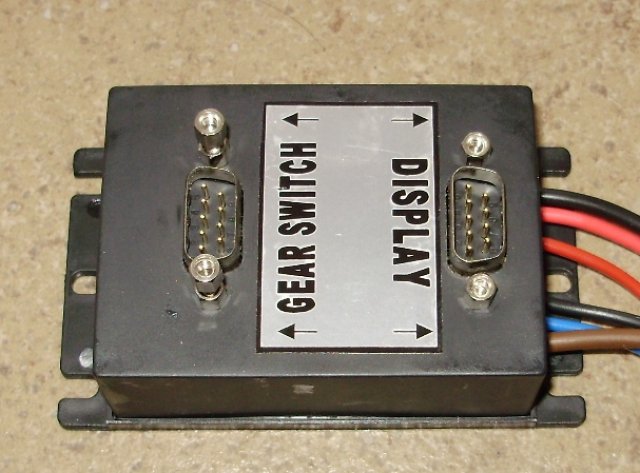

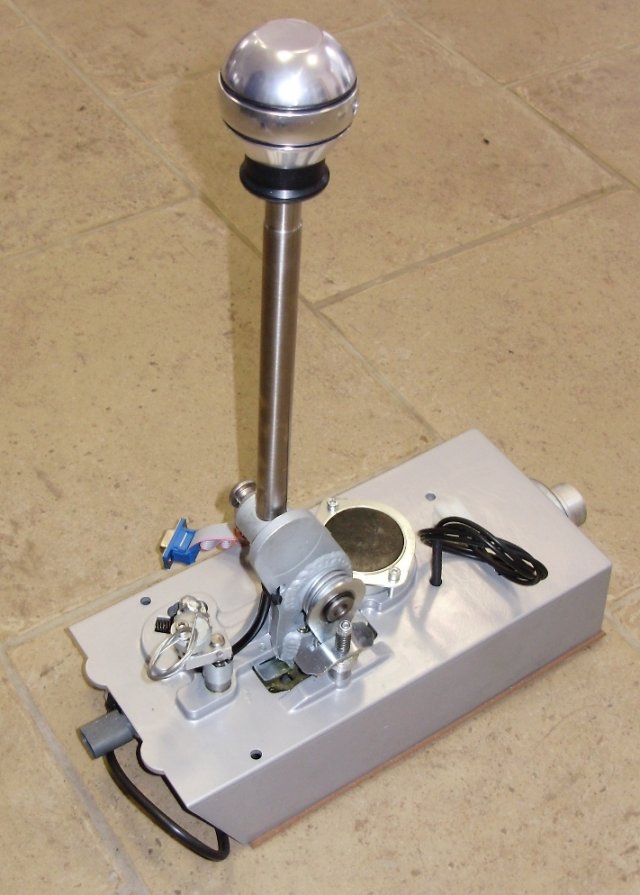

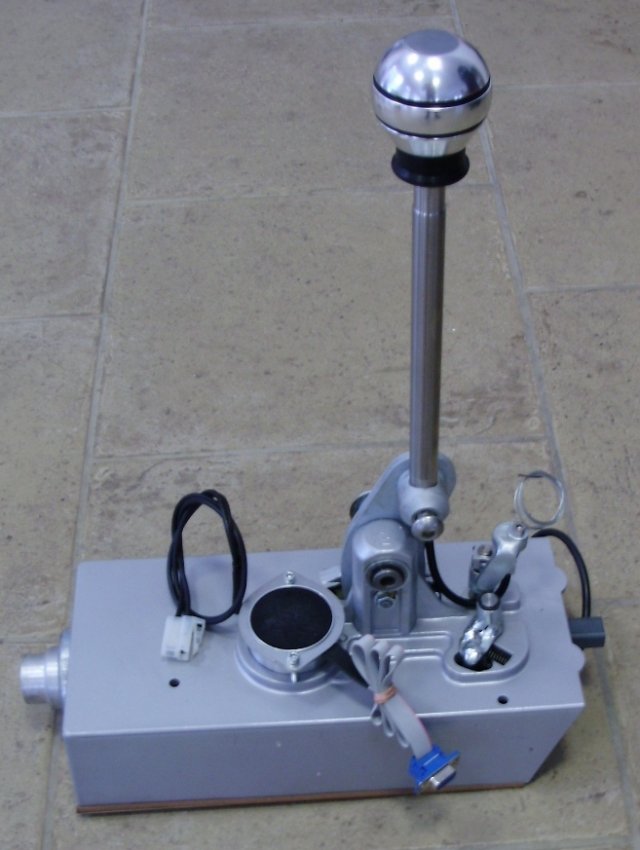

produced in both versions: SQS Mechanical and SQS-E with electromagnet assistant.

SQS Mechanical designed only for dog boxes (usually used only by DRAG racers becouse one strip require only 3x shift)

SQS-E designed for synchronised gearboxes - anyway can be used also with dog box with more comfort , safety and exactness (90% of sales)

SQS specification by ordering:

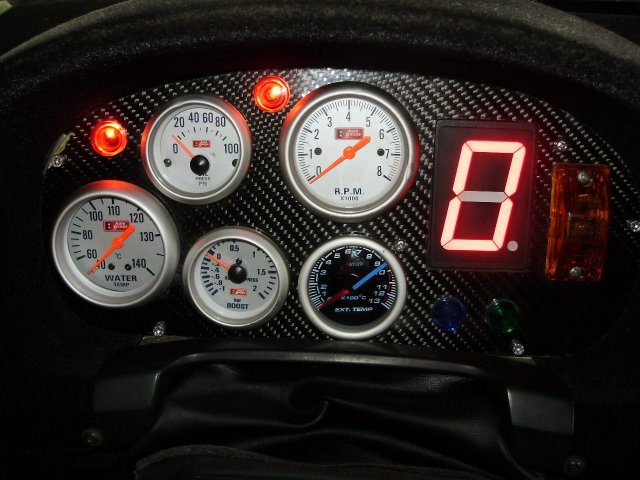

do you like large / mid square  or small round display?
http://www.sqsracing.com/files/fs_files/productdetails/409/display-dimensions_151.pdf
http://www.sqsracing.com/files/fs_files/productdetails/409/display-pic_152.jpg

Do you want SQS unit place INSIDE TUNNEL (like original shifter) ?
 or ON TOP of TUNNEL (usual for racing cars) ?
 is car 4x4 ?

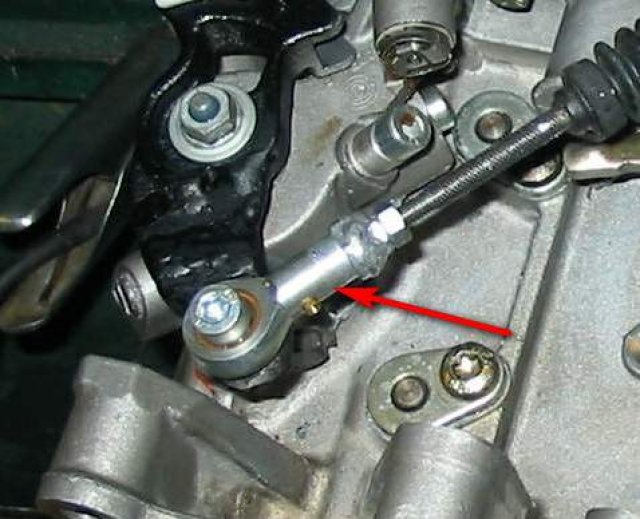

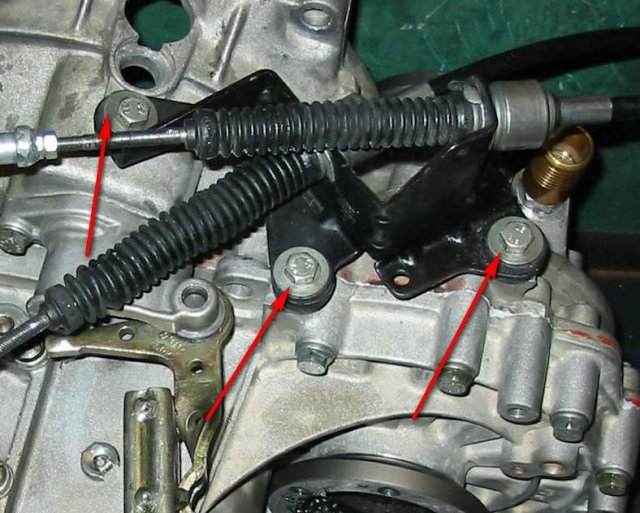

When SEQSHIFT mounted on racing gearbox is necessary check and measure bowden strokes, becouse various manufacturers produce dog-kits with different strokes than orginaly from VW.

Download below manual:  "Bowden stroke measuring" to understand more....

Aseembly manuals also available to download....



SHIFT CUT  / POWER SHIFT / FLAT SHIFT - shifting without clutch or under full throttle

its generally possible with all DOG boxes (when release throttle by shifting)

with SEQUENTIAL shifting its more easybecouse is easy get signal for ignition cut

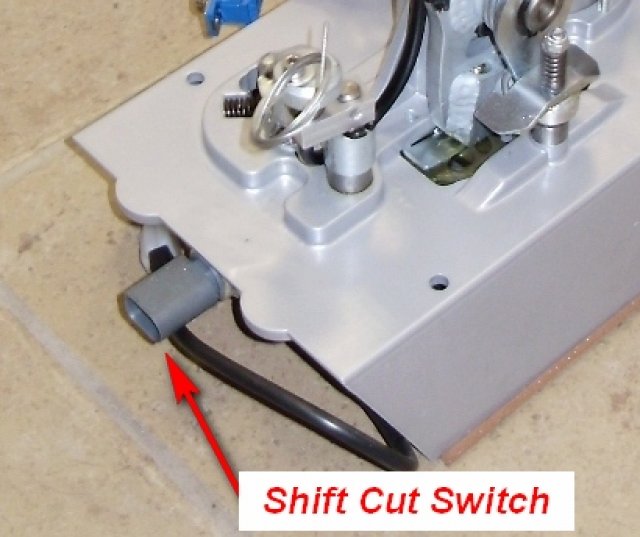

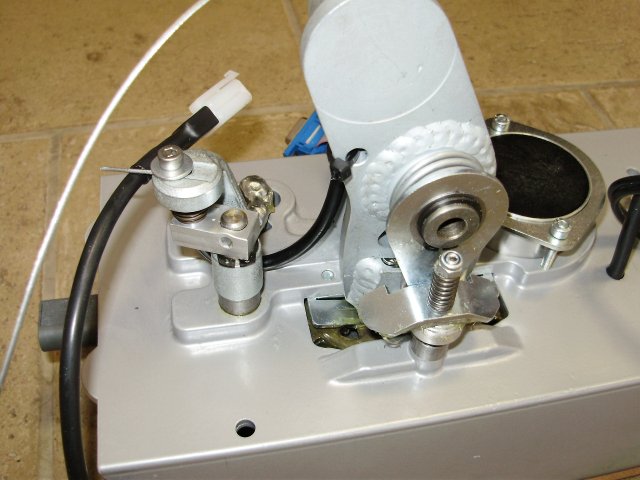

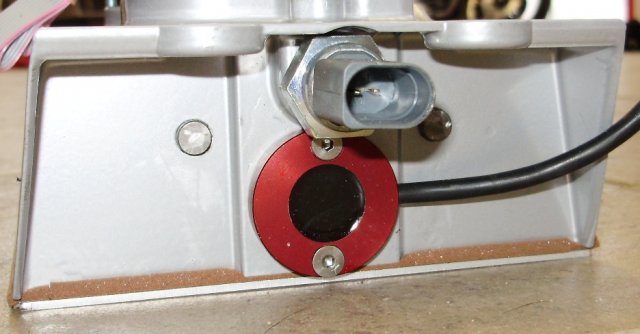

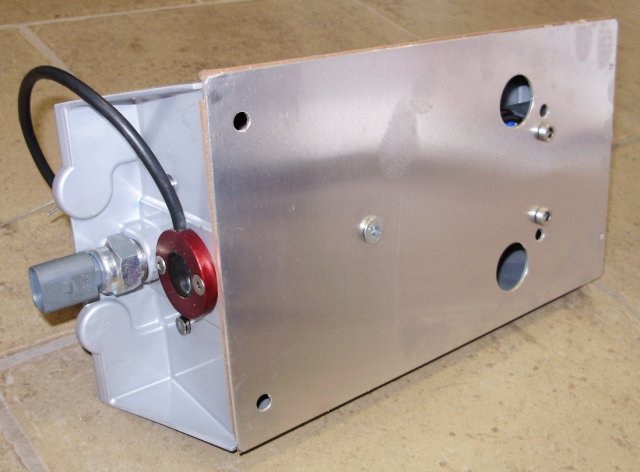

ALL  !!!!   SQS shifters are equiped on back side with Shift Cut Switch to give this signal to ECU (see gallery)

to get the signal is necessary minimal move of shift lever - uder load it may require more power from hand !

more sofisticated solution is use SCB : www.sqsracing.com/produkt/319:414:hgk-sck-shift-cut-lever-power-knob

SCK gives signal sooner than lever moves !
