Shift Cut Knob (SCK)

210.00 €

without VAT
Producer: SQS
Publication date: 20.04.2009
Code: SCK
Warranty: 24 months
VAT: 21 %

Variant description

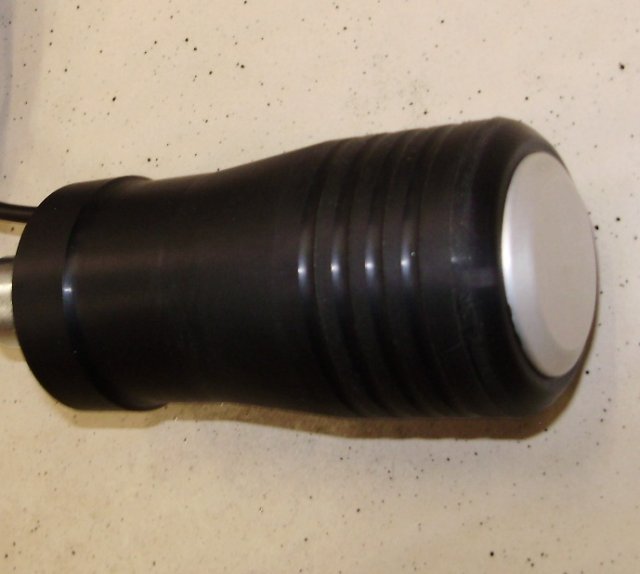

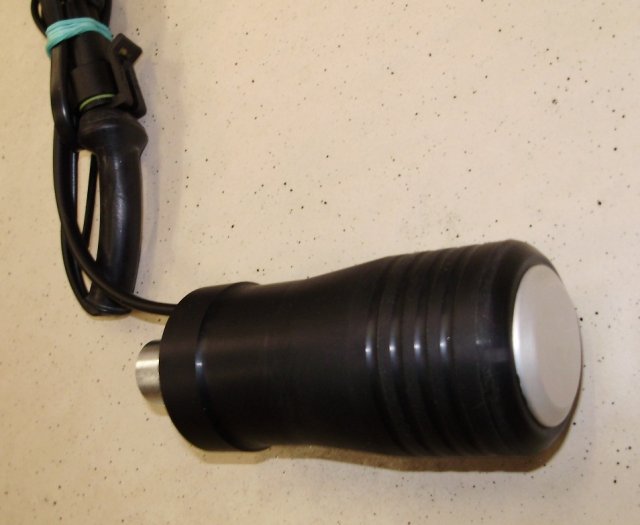

Shifting Knob with 2x microswitch  inside .

Designed for Power-Shifting with full gas - by shifting gives signal for shift-cut !

Possible use also with H-pattern !

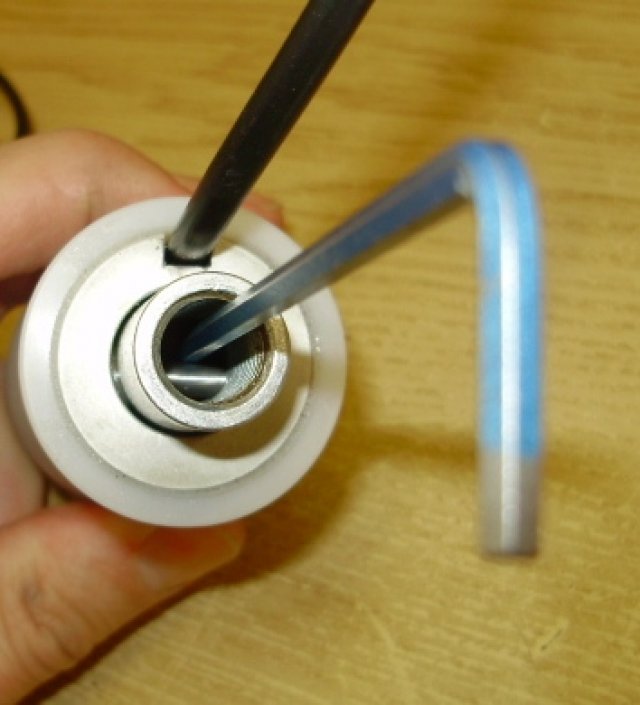

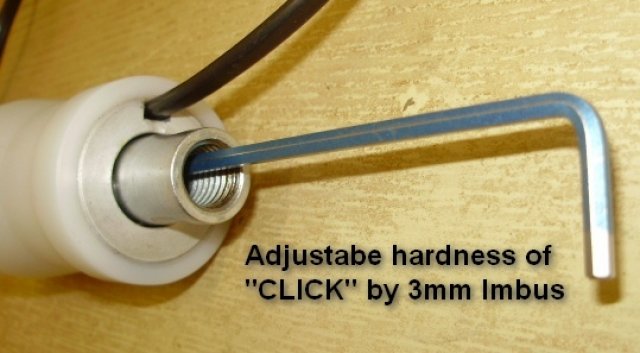

Adjustable hardnes of  CLICK !

Internal design - all from Dural and Steel, plastic only surface of Knob !

Now only in BLACK colour !

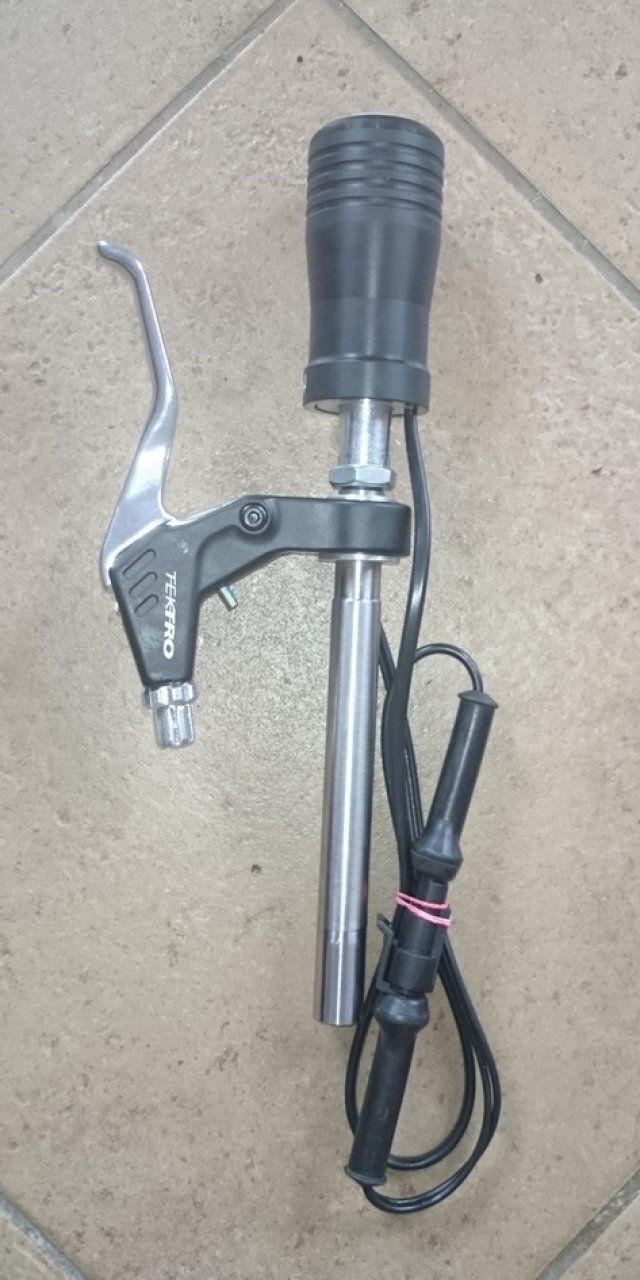

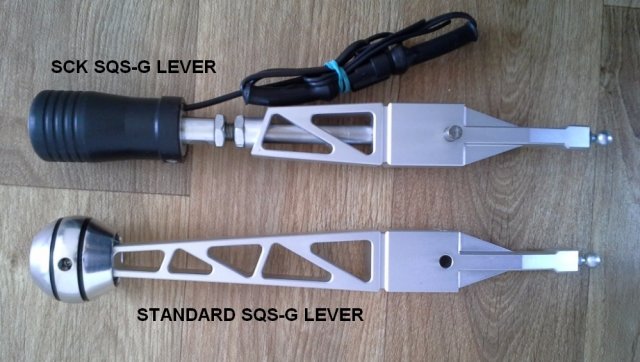

Available shift-lever to connect to SQS shifter (+40 EUR)

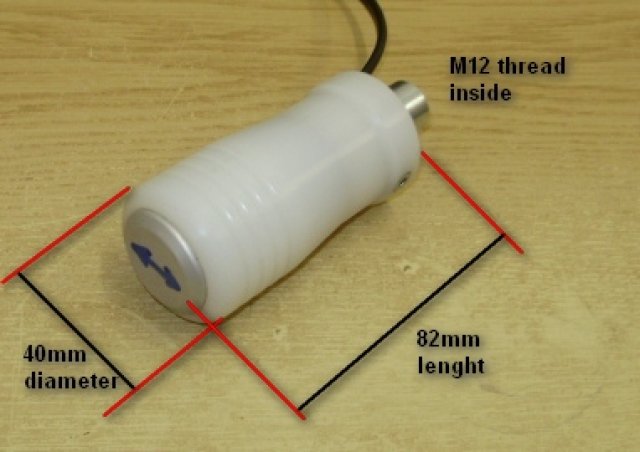

Connecting thread in bootom: M12x1,75 (delivered incl. bolt to be welded on any H-shifter...)

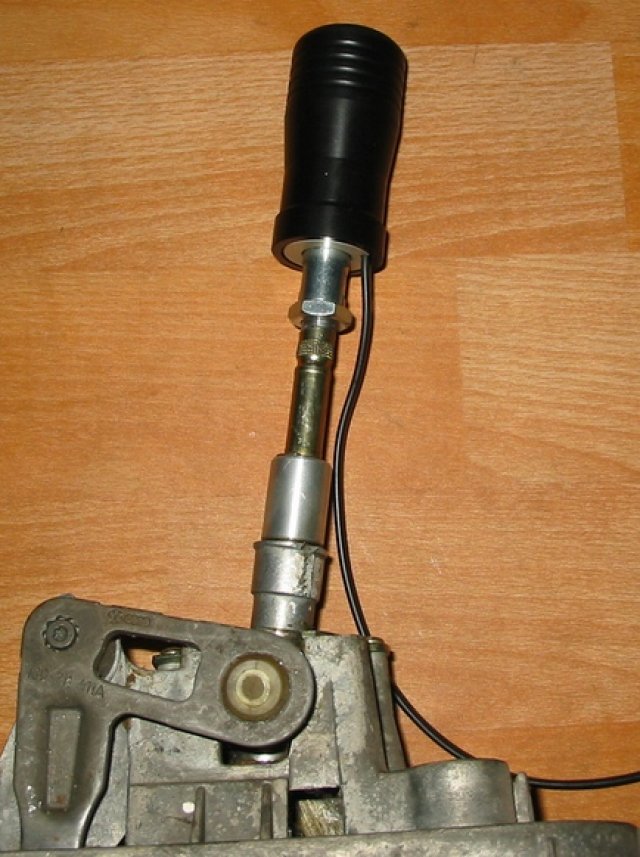

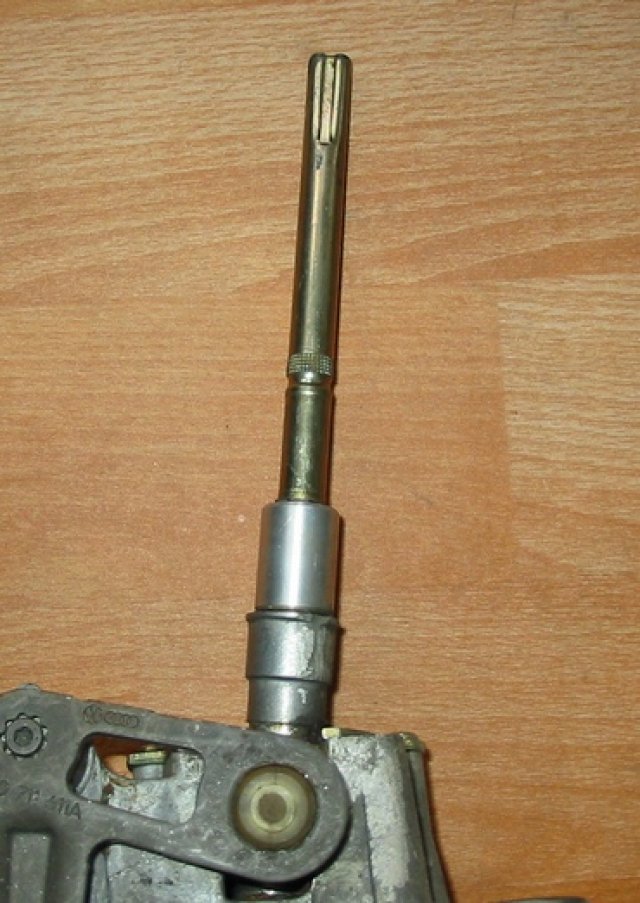

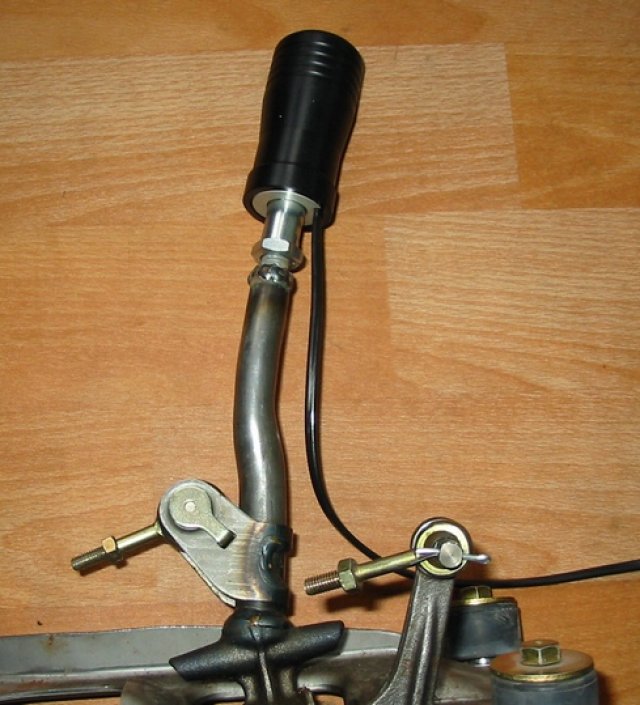

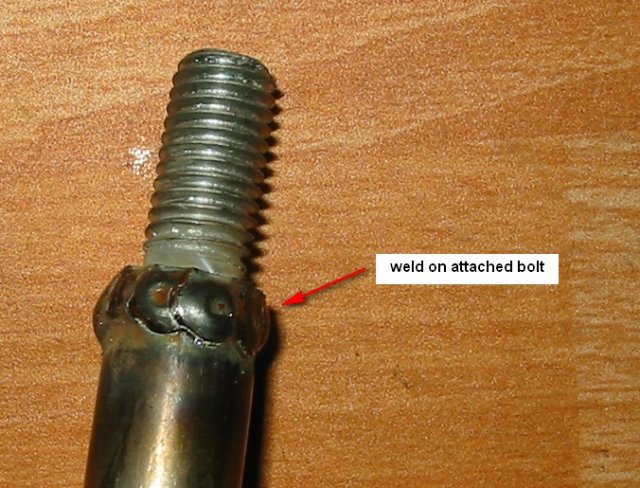

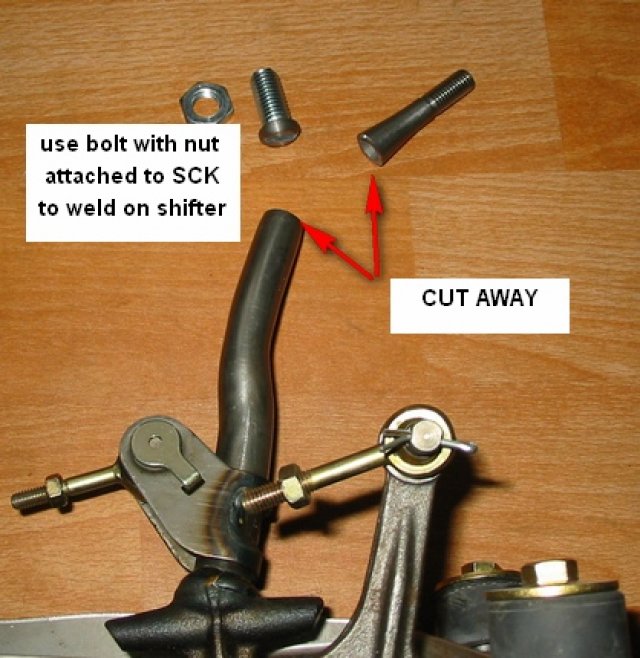

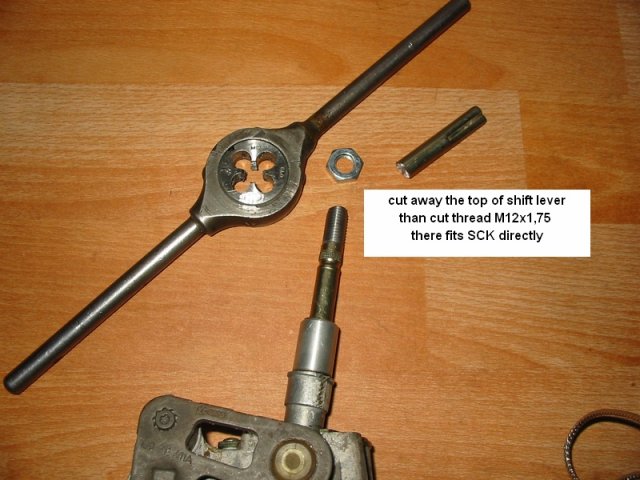

How connect SCK to other than M12 thread (by H-shifter)  see pic in GALLERY (weld on  / cut thread on shift lever)

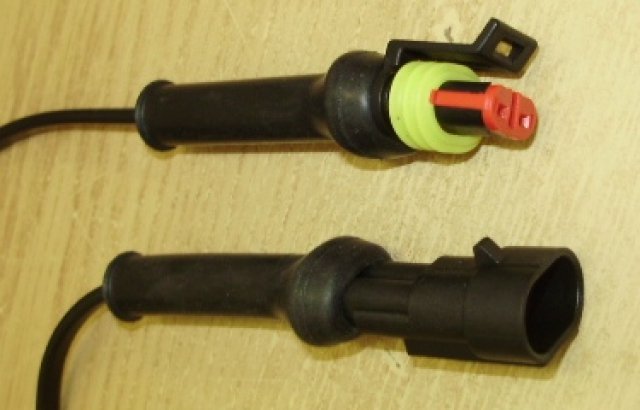

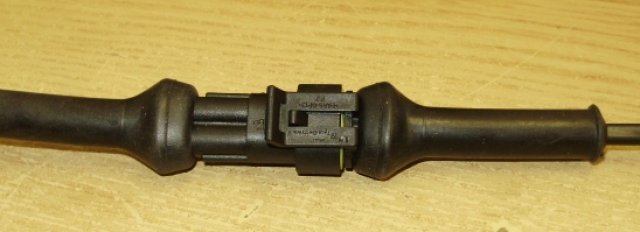

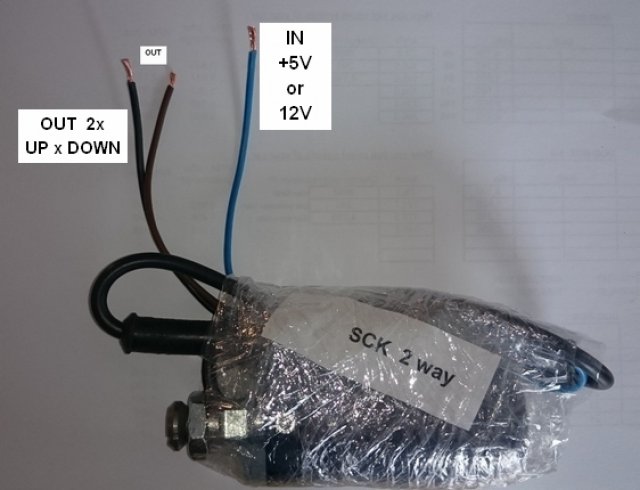

How connect wires by 2WAY version (3wires) - see pic in GALLERY

How connect wires by BASIC (2wires) - 1 is signal IN , 2nd  is signal OUT - no matter what, what sigal do you need - ask ayour ECU programmer - usually 5V or 12V.





2 different versions !

BASIC

- 2x microswitches, 2 wires, giving same signal by up and down shifting - usuall for H-patter

TWO-WAY

- 2x microswitches, 3 wires, giving signal by up shifting to one wire, by down shifting to second wire - usuall for SEQUNETIAL

ofcourse can left one wire Off or connect them together (than its same as BASIC)
