SQS-G 01E
2460.00 €
without VAT| Producer: | SQS |
| Publication date: | 14.02.2010 |
| Code: | SQS01E |
| Warranty: | 24 months |
| VAT: | 21 % |
| Other variants: | SQS-G Mechanical |
Product description

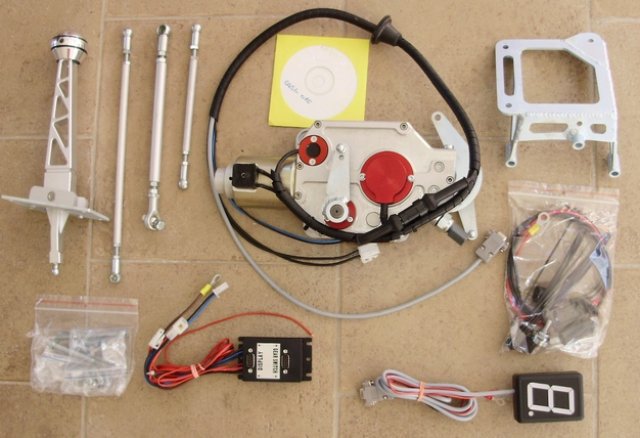

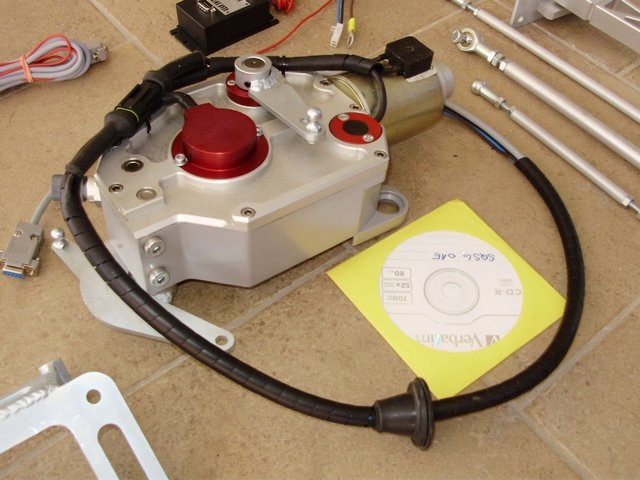

SQS-G is mounted directly at gearbox and is operated by 1 bowden - equiped by electromagnet assistant.
Is designed for synchro or dog Gearbox 01E (6speed manual) used in most Audi 1990-2005 and Passat B5.

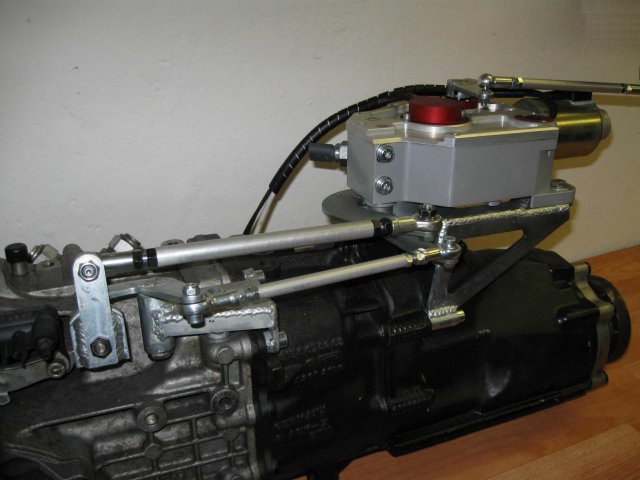

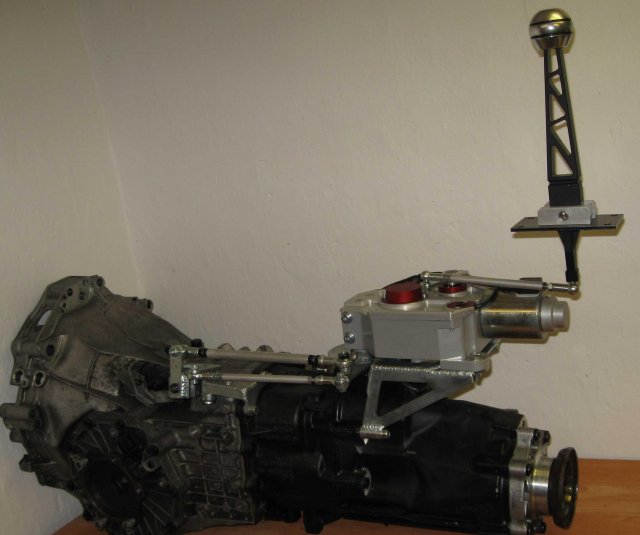

SQS unit must be mounted directly on gearbox - it requires modify tunnel of car-body ! - optimal for Racing cars !

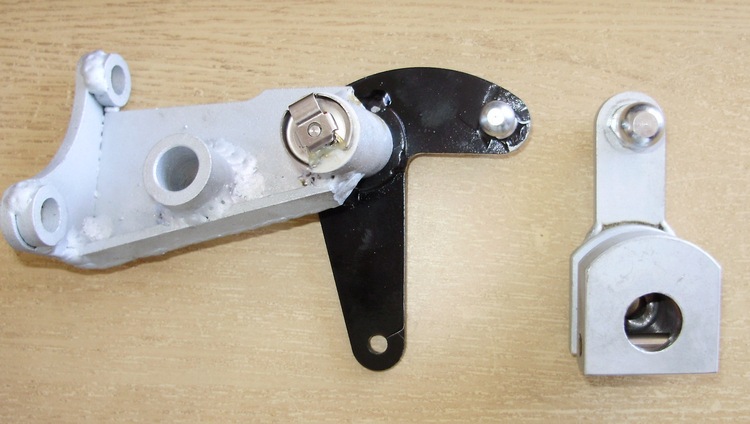

Becouse DOG box from various manufacturers can have different shifting strokes than original synchro box, is necessary measure this strokes - with levers on gearbox delivered from SQS. So right schedule is - install on 01E gearbox (with DOG kit) - levers from SQS, than measure strokes according manual and than we can make right SQS-G unit..... - see attached pics and drawing below. After measuring that strokes we will send the SQS unit with optimal shifting gate inside.
Files
|
01-e-dimensions.pdf | (0.11 MB) | |
|
|
01e-v2-movements.pdf | (0.01 MB) | |
|
p5260002.jpg | (0.09 MB) |
|
|
|
|
|
|
