AUDI 01E DOG BOX 2WD (AUDI 01E DOG BOX 2WD)
Product description

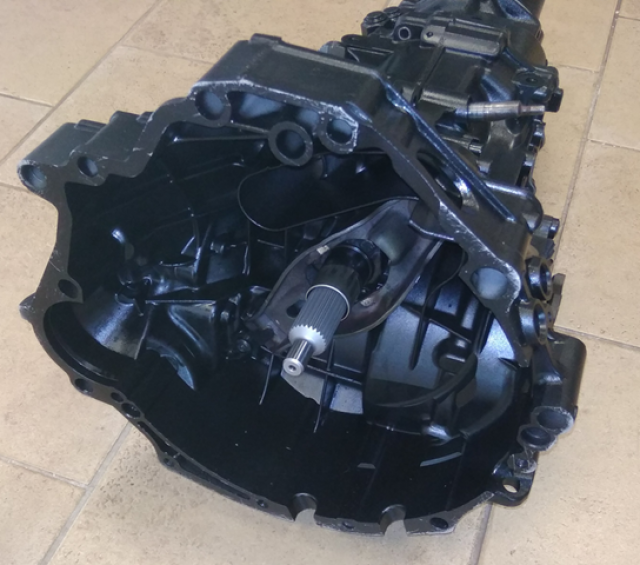

01E DOG 2WD box with wide range of ratio sets !
This gearbox is very popular by MID engine
I
In stock keep MID 6° (4868 EUR) and DRAG 4° ( 3933 EUR) ratios,
custom can be made SHORT, LONG, SUPERLONG
(always + 380 EUR /set to standard price above ! )

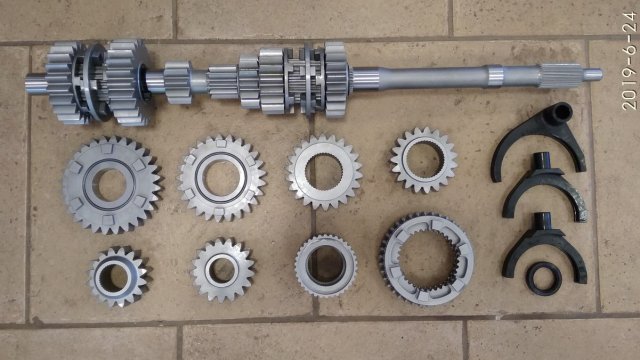

Gearkits includes also steel forks !
Inlet shaft is reinforced and hase bigger diameter 26mm /26spline (OEM 22,75 mm)
It require use bigger clutch centre-hub :
- Sachse centre hub no. 931
- Tilton centre hub no. 1 5/32” x 26 spline we offer:
Rigid Sinterpad SACHS Performance or CCC clutch disc - 240mm diameter / thickness 7.8mm - 280 EUR
| 01E SHORT | custom made | ||
| teeth | ratio | ||
| 1.gear | 28 | 10 | 2,800 |
| 2.gear | 25 | 13 | 1,923 |
| 3.gear | 23 | 15 | 1,533 |
| 4.gear | 22 | 17 | 1,294 |
| 5.gear | 21 | 18 | 1,167 |
| 6.gear | 20 | 19 | 1,053 |
| 01E MID | |||
| teeth | ratio | ||
| 1.gear | 28 | 10 | 2,800 |
| 2.gear | 25 | 13 | 1,923 |
| 3.gear | 23 | 15 | 1,533 |
| 4.gear | 21 | 17 | 1,235 |
| 5.gear | 20 | 19 | 1,053 |
| 6.gear | 19 | 20 | 0,950 |
| 01E LONG | custom made | ||
| teeth | ratio | ||
| 1.gear | 28 | 10 | 2,800 |
| 2.gear | 25 | 13 | 1,923 |
| 3.gear | 23 | 16 | 1,438 |
| 4.gear | 21 | 18 | 1,167 |
| 5.gear | 19 | 20 | 0,950 |
| 6.gear | 17 | 20 | 0,850 |
| 01E DRAG 4° | |||
| teeth | ratio | ||
| 1.gear | 28 | 10 | 2,800 |
| 2.gear | 25 | 13 | 1,923 |
| 3.gear | 22 | 17 | 1,294 |
| 4.gear | 19 | 20 | 0,950 |
| 01E SUPER LONG | custom made | ||
| teeth | ratio | ||
| 1.gear | 28 | 10 | 2,800 |
| 2.gear | 25 | 13 | 1,923 |
| 3.gear | 22 | 17 | 1,294 |
| 4.gear | 19 | 20 | 0,950 |
| 5.gear | 17 | 21 | 0,810 |
| 6.gear | 16 | 23 | 0,696 |
Gearkit use OEM Final Drives :
| FD OEM | |||
| 31 | 8 | 3,875 | most usuall |
| 35 | 9 | 3,889 | |
| 37 | 9 | 4,111 | |
| 35 | 8 | 4,375 |
|
|
|
