VW 6°Synchro kit 02M/02Q (02Q Synchro BOOST)

1230.00 €

without VAT
Producer: SQS
Publication date: 17.09.2013
Code: SBVW02QBOOST
VAT: 21 %

Product description

6  speed Synchro-KIT for VW gearboxes  02Q-02M

NOW offered 2 versions of ratio set: BOOST x LONG !



02Q SYNCHRO BOOST
  teeth ratio
1.gear
2.gear
3.gear 23 15 1,533
4.gear 20 17 1,176
5.gear 20 17 1,176
6.gear 17 17 1,000

02Q SYNCHRO LONG
  teeth ratio
1.gear
2.gear
3.gear 23 14 1,643
4.gear 22 16 1,375
5.gear 22 15 1,467
6.gear 20 16 1,250



This gearbox is used approx from 2000 till now in Golf, Passat, Octavia, Leon, A3, Toledo, Bora etc...

Mk4-Mk7

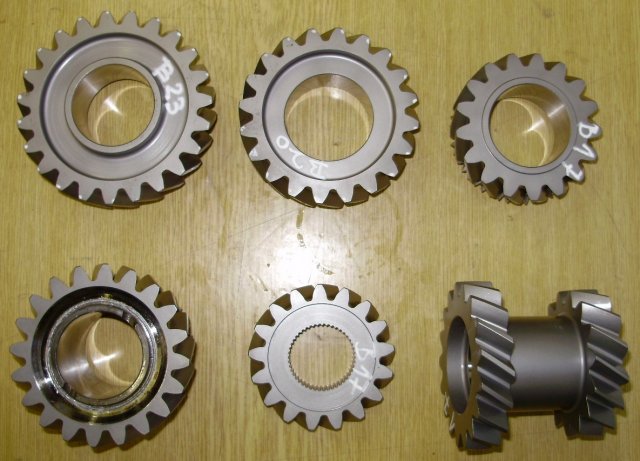

Gearkit contents from 3°-4°-5°-6° gears with modifed ratios for better acceleration and strong teeth for higher torques.

1°-2° gears are used original incl inlet shaft.

Kit ofcourse compatible with all available original Final Drives.

Gears are made from original gears - conus for synchro rings stay original and gears are made new - stronger with different ratio.

Is necessary deliver to us 4x original gears with synchro conus or charged + 200 EUR more.

Conus gears must be delivered in advance (if later will be returned 200 EUR charge by Paypal).

Conus gears must have in good condition: conus surface, needle bearing surface, side teeth for sleeve !

Gear teeth can be demaged - not important !



NOTE:

All our kits (especialy BOOST kits) are designed as strong as possible in dimensions limits of casing !

Its impossible say how much torque can handle - 02Q gearboxes use it  succesfully with over 600 Nm,

also our gearkits are designed as racing equipment -  to be strong and can handle high power and torque - its main focus,

durability is not so important - its not recomended use it in street use with high millage - also with low power and used on long

distances (thousands km) can wear surafce of teeth !



Please download files below:

- speed counter with  ratios and existing original Final Drives (CWP)

- booklet with pictures - see gears which must be sent to us !
