VW 02M/Q (MQ350) 4°/6° DOG Box
Parameters
| Material: | Heavy Duty Steel |
| Weight: | 18 kg |
| Colors: |
|
Product description

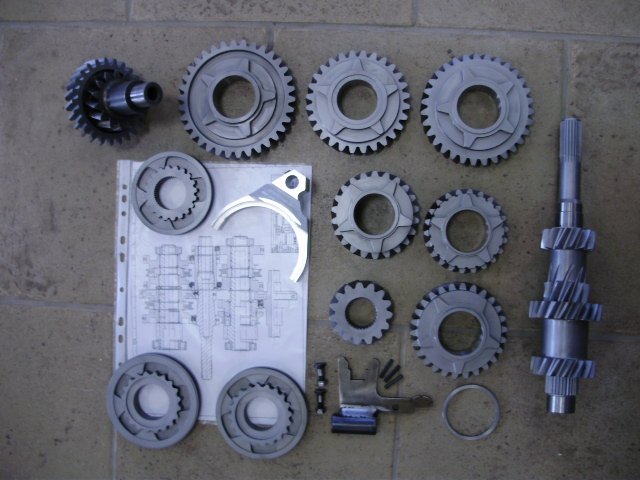

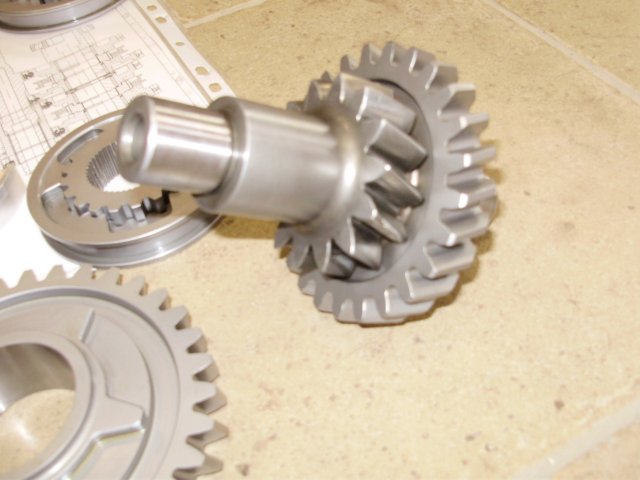

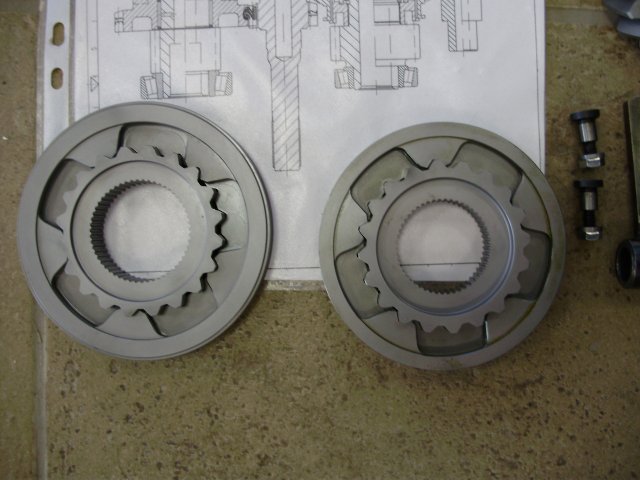

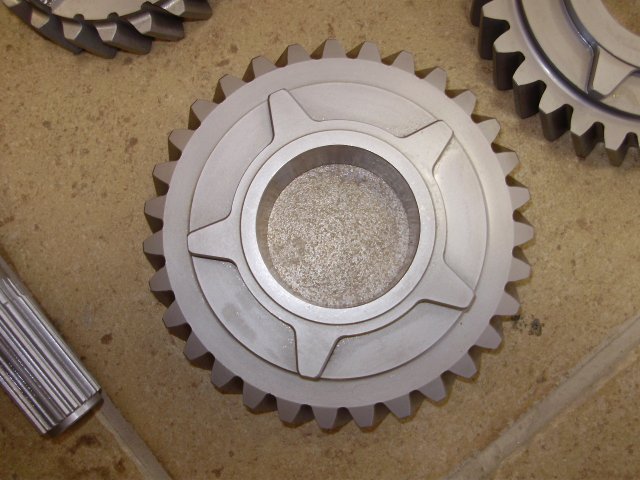

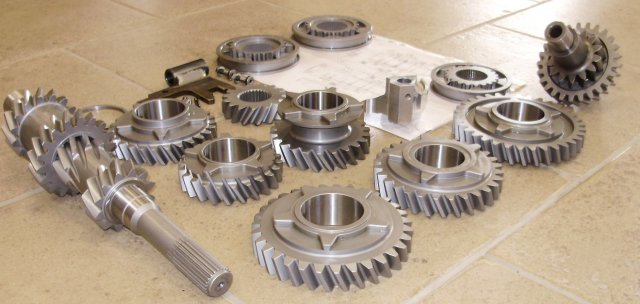

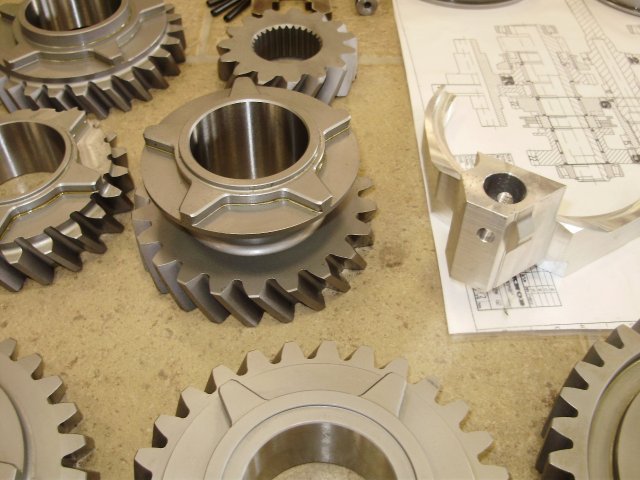

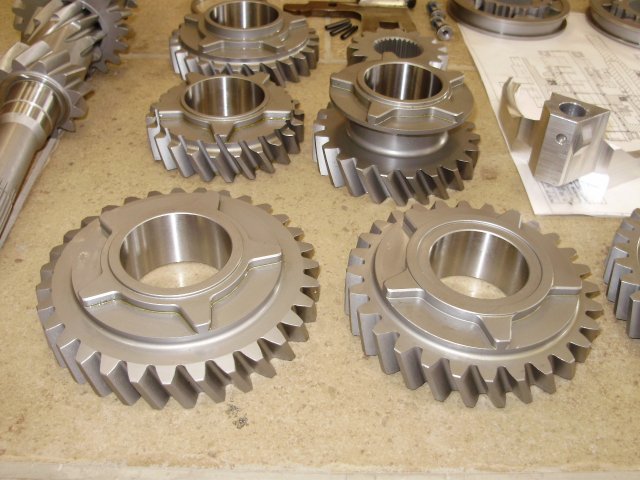

6° DOG-KIT for VW gearboxes 02M-02Q (MQ350 line)
This gearbox is used approx from 2000 till now in Golf, Passat, Octavia, Leon, A3, Toledo, Bora etc... mostly with Turbo engines, TDI, V6
Mk4-Mk7
available ratio sets : LONG - BOOST - DRAG 4°
(details below or in speedcounter ) - possible deliver as 6° or 4° set

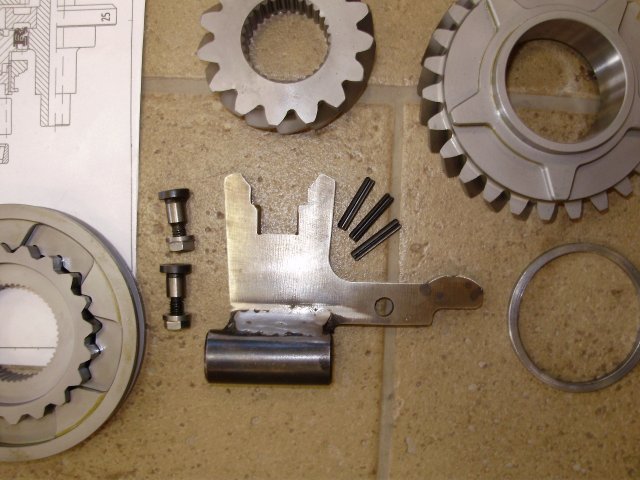

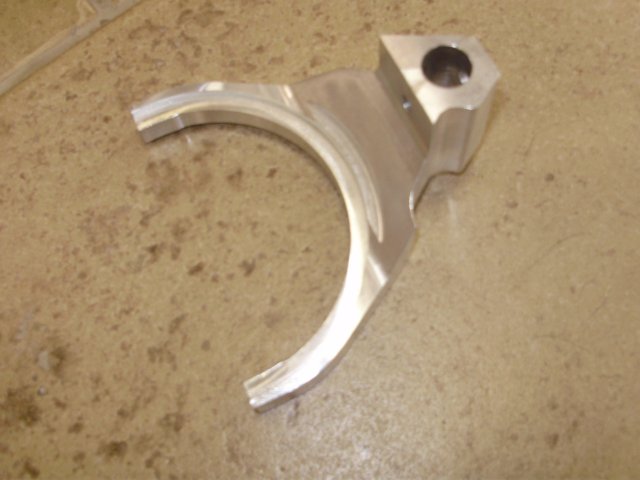

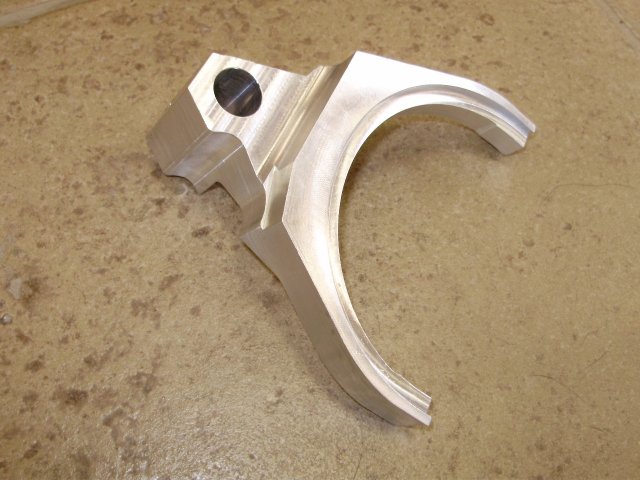

6° version - 3983 EUR - incl. Alu Fork 3-4 + RSE12 + RSE34 + RSE56 (FRK)
4° version - 3442 EUR - incl. Alu Fork 3-4 + RSE12 + RSE34
Gear set without FD !
- Use original VW Final Drives - wide range - see ratios below !
Available Final Drives (OEM)
| FD 1 - 4 | 4,235 | 4,200 | 3,944 | 3,875 | 3,684 | 3,450 | 3,333 | 3,238 | 2,955 |
| FD 5 - 6 | 3,273 | 3,316 | 3,087 | 3,100 | 2,917 | 2,760 | 2,727 | 2,615 | 2,407 |
| CW teeth | 72 | 63 | 71 | 62 | 70 | 69 | 60 | 68 | 65 |
| Pinion 1-4 | 17 | 15 | 18 | 16 | 19 | 20 | 18 | 21 | 22 |
| Pinion 5-6 | 22 | 19 | 23 | 20 | 24 | 25 | 22 | 26 | 27 |
| Ratio set 2 LONG 2015 | |||
| teeth | ratio | ||
| 1.gear | 29 | 9 | 3,222 |
| 2.gear | 26 | 12 | 2,167 |
| 3.gear | 23 | 14 | 1,643 |
| 4.gear | 22 | 16 | 1,375 |
| 5.gear | 22 | 15 | 1,467 |
| 6.gear | 20 | 16 | 1,250 |
| Ratio set 3 BOOST | |||
| teeth | ratio | ||
| 1.gear | 29 | 9 | 3,222 |
| 2.gear | 26 | 12 | 2,167 |
| 3.gear | 23 | 15 | 1,533 |
| 4.gear | 20 | 17 | 1,176 |
| 5.gear | 20 | 17 | 1,176 |
| 6.gear | 17 | 17 | 1,000 |
| optional | |||
| 6.gear | 16 | 17 | 0,941 |
| Ratio set 4 DRAG | |||
| teeth | ratio | ||
| 1.gear | 29 | 9 | 3,222 |
| 2.gear | 26 | 12 | 2,167 |
| 3.gear | 23 | 15 | 1,533 |
| 4.gear | 20 | 17 | 1,176 |
| Optional 4th or 3rd + 4th gear : | |||
| 4.gear | 20 | 18 | 1,111 |
| 3.gear | 23 | 16 | 1,438 |
| 4.gear | 19 | 19 | 1,000 |
| Combination - DRAG + optional gears | |||
| teeth | ratio | ||
| 1.gear | 29 | 9 | 3,222 |
| 2.gear | 26 | 12 | 2,167 |
| 3.gear | 23 | 15 | 1,533 |
| 4.gear | 20 | 18 | 1,111 |
| teeth | ratio | ||
| 1.gear | 29 | 9 | 3,222 |
| 2.gear | 26 | 12 | 2,167 |
| 3.gear | 23 | 16 | 1,438 |
| 4.gear | 19 | 19 | 1,000 |
More about 02M gearbox - Self Study program VW: www.volkspage.net/technik/ssp/ssp/SSP_205.pdf
Please download files below :
- speed counter with all possible ratios and Final Drives (CWP)
- assembly manual to know how install it itself....
- read more below about 02M/Q problematics !
- see SHIFTING SHAFT modification manual - very important for 6°or 5°DOG-kits !
Variant description
Files
|
!racing-gearbox-vw-02m-q-4-6sp-2016.xls | Speedcounter | (0.07 MB) |
|
manual-02m-q-long-boost.pdf | Manual 02M-Q 6speed | (2.66 MB) |
|
|

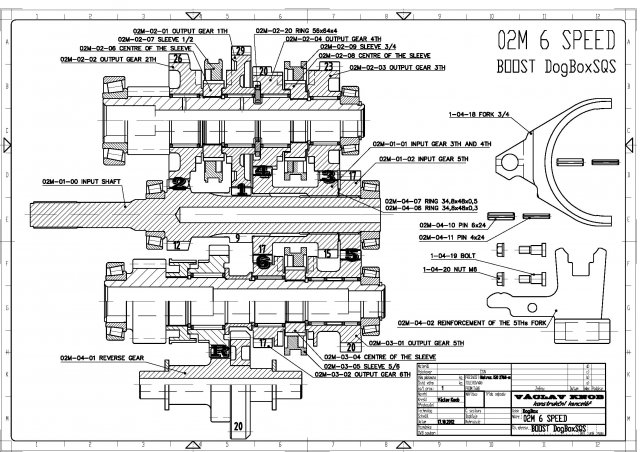

02m-6-speed-boost.pdf | Drawing 02M 6sp | (0.09 MB) |
|
|

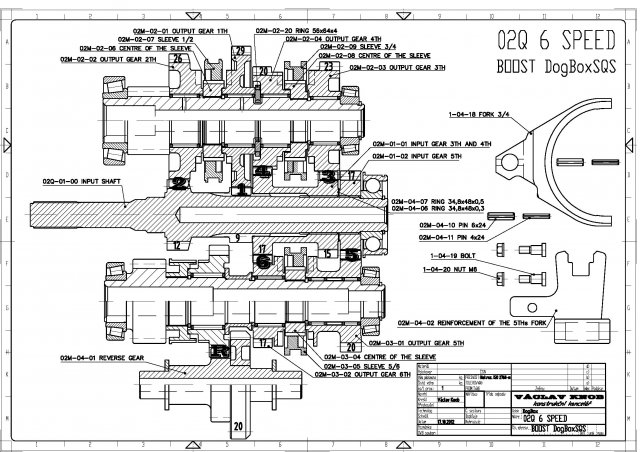

02q-6-speed-boost.pdf | Drawing 02Q 6speed | (0.09 MB) |
|
|
shift-shaft-02m-modification.pdf | (0.26 MB) | |
|
|
shift-shaft-02q-modification.pdf | (0.25 MB) |
|
|
|
|
|
|
|
|
|
|
|
|
